Project — live electronics & visuals

Microcosm

Styrian accordion, kalimba and percussion meet analogue effects and modular synthesizers – looped live, transformed and invented entirely in the moment.

Jonny Kölbl plays the Styrian accordion in the Microcosm dome

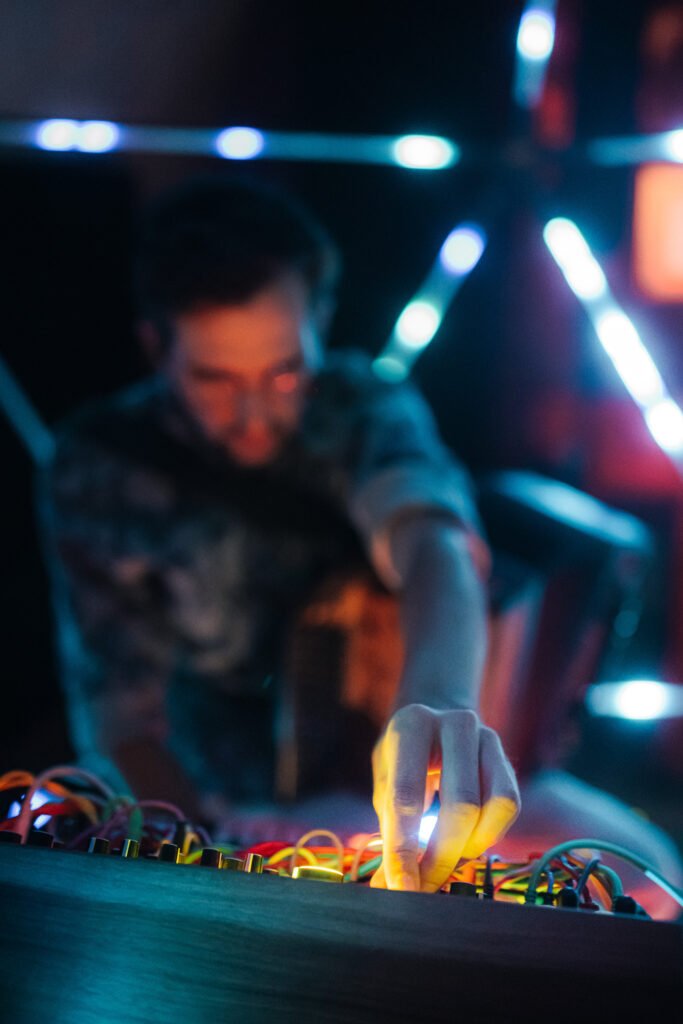

Jonny Kölbl patching the modular synthesizer in blue light, Microcosm

The sound space

Where folk music meets modular synthesizers.

Microcosm opens up a sound space in which traditional instruments like the Styrian accordion, kalimba and percussive elements meet analogue effects and modular synthesizers. The starting point is melodic fragments from Alpine and Nordic folk music. These are recorded live, transformed, looped and turned into new soundscapes – between minimal drones, rhythmic density and open, atmospheric textures.

The musical process unfolds entirely in the moment. Nothing is pre-programmed; the sound is shaped directly through analogue signal paths and improvised interaction.

In parallel, illustrative real-time visuals emerge that respond sensitively to the sound and enter into a mutual dialogue with the music.

Microcosm is a first public approach to this electroacoustic-visual experiment – a field of tension between cultural origins and contemporary abstraction.

  • Styrian accordion
  • Kalimba
  • Percussion
  • Analogue effects
  • Modular synthesizer
  • Real-time visuals

At worktwo people, one sound space

Behind the scenes

From sketch to dome.

Behind the 45 minutes on stage are ten months of work – and none of it is off the shelf. The dome, the instruments, the light control: all designed, built, wired and programmed myself.

Stage · designed & built myself

The LED dome

The stage of Microcosm is a walk-in geodesic dome in the shape of an icosahedron – designed and built myself, from the first pencil line on paper to the last solder joint. It completely surrounds me while I play and makes the idea of a microcosm tangible in space.

The struts are made of wood; I designed the connecting nodes myself and 3D-printed them. That way the dome can be taken apart, transported and rebuilt anywhere. Around 25 metres of individually addressable LED strips run along the struts, driven via Art-Net/DMX from a control box I also built myself.

  • Wooden struts
  • 3D-printed nodes
  • 25 m of LEDs
  • Art-Net/DMX
  • QuinLED

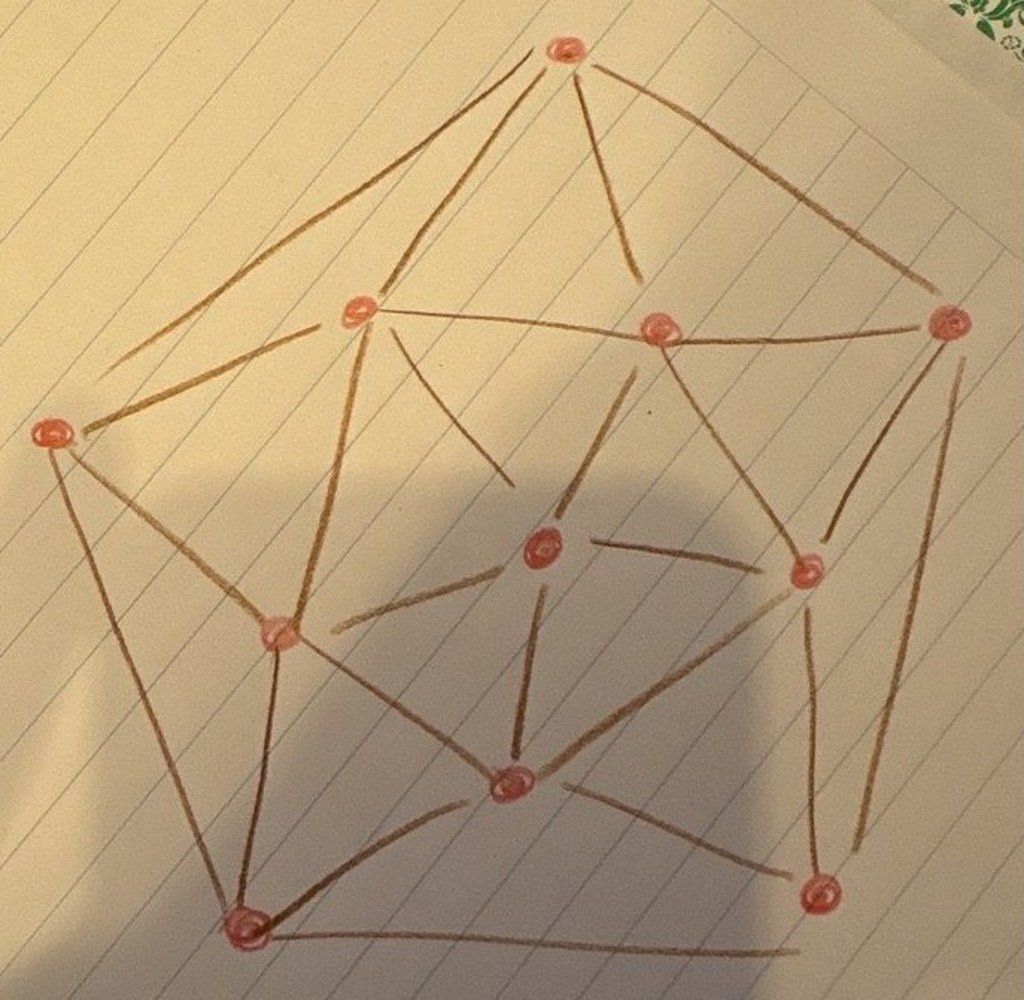

  • First hand sketch of the icosahedron structure of the Microcosm domeFirst sketch

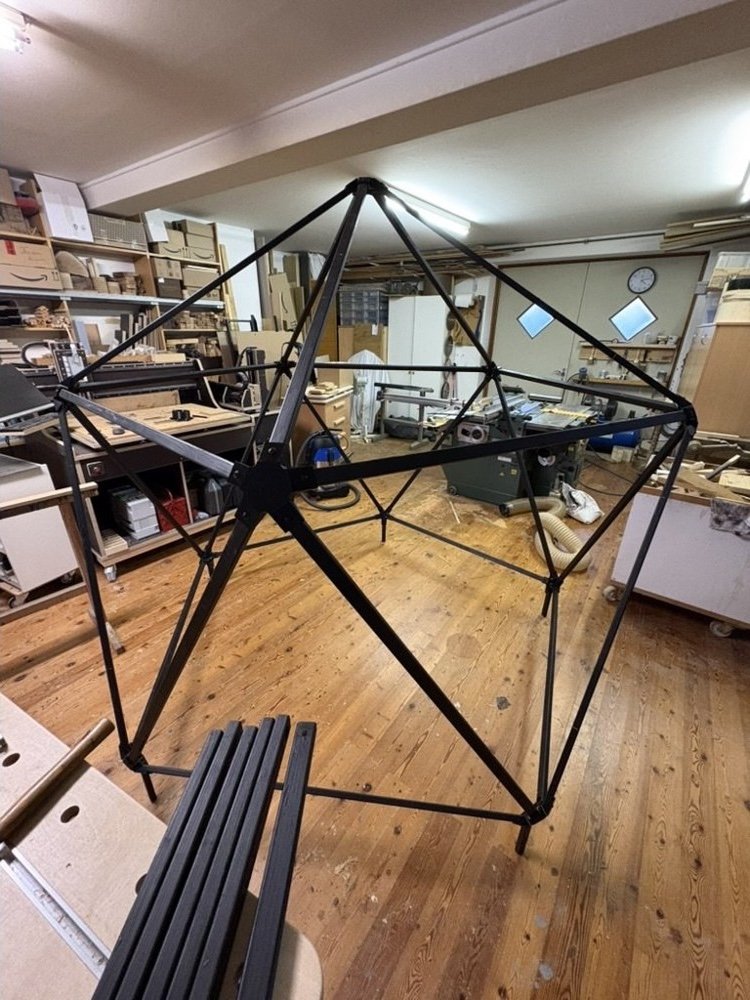

  • Trial assembly of the icosahedron dome for Microcosm in the workshopShell in the workshop

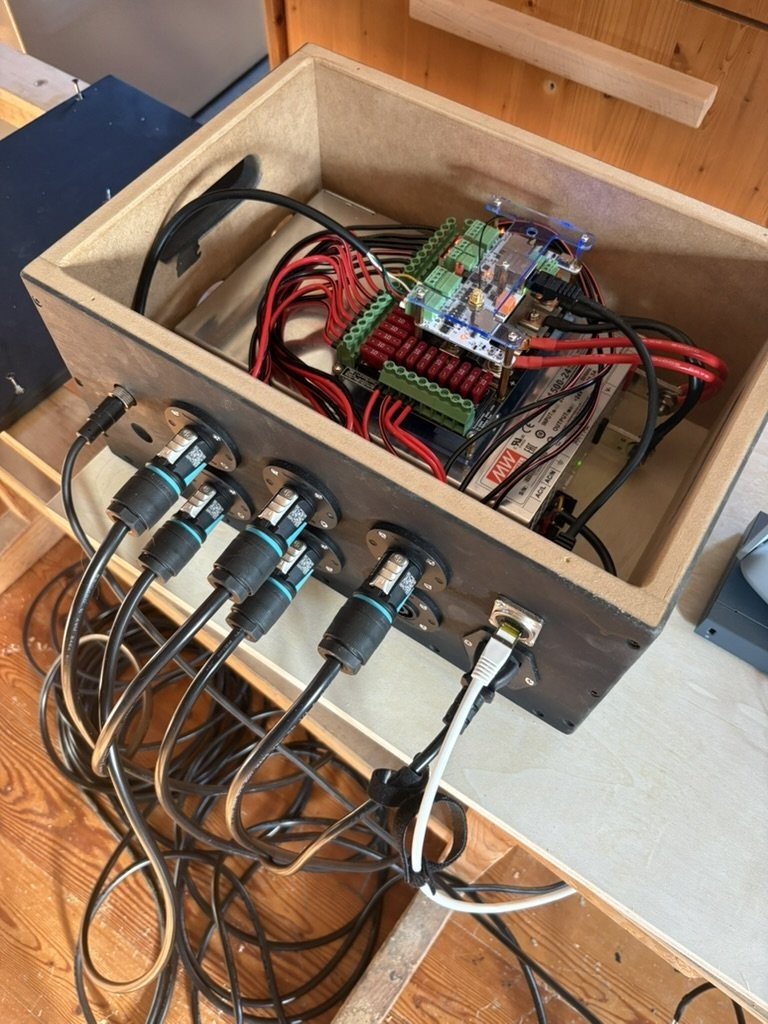

  • Self-built control box with LED controller and cables for MicrocosmSelf-built control box

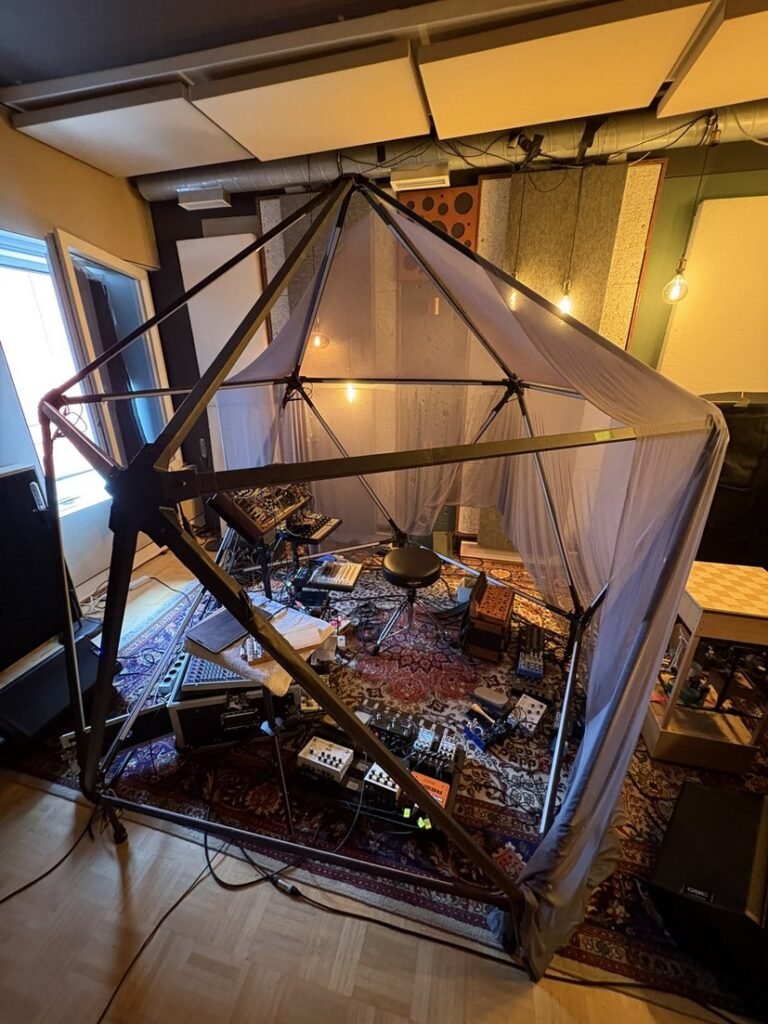

  • Rehearsal setup with dome and live rig of Microcosm at AudiotopeRehearsal at Audiotope Studio

Sound · wired & programmed myself

The instrument setup

At its heart is a Eurorack modular system with modules from Mutable Instruments – Plaits, Stages, Blades, Beads and Marbles –, complemented by an Arturia MicroFreak and the sequencer Torso T-1. Accordion and kalimba are picked up by microphones and electromagnetic pickups and run through a pedal chain from Chase Bliss (Blooper, Onward, MOOD MKII, Generation Loss MKII, CXM 1978 and Clean) and Hologram Electronics (Microcosm, Chroma Console and Infinite Jets), plus the Plus Pedal from Gamechanger Audio.

A Radial EXTC-Stereo reamper also lets the electronic sources run into this chain. A Morningstar MC6 Pro recalls the presets of every device at once via MIDI for each piece; expression pedals and a 12 Step shape filters, pressure and volume in real time. The first pieces were written during several weeks of seclusion in a remote cabin in Croatia – with the whole setup in tow.

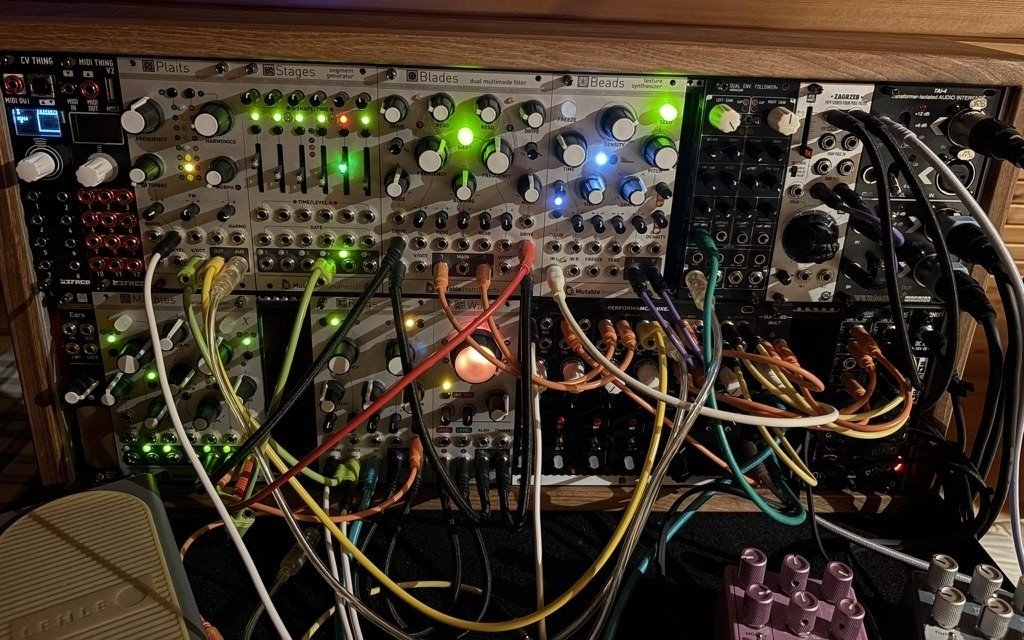

  • Eurorack modular synthesizer with patch cables, MicrocosmThe Eurorack modular system

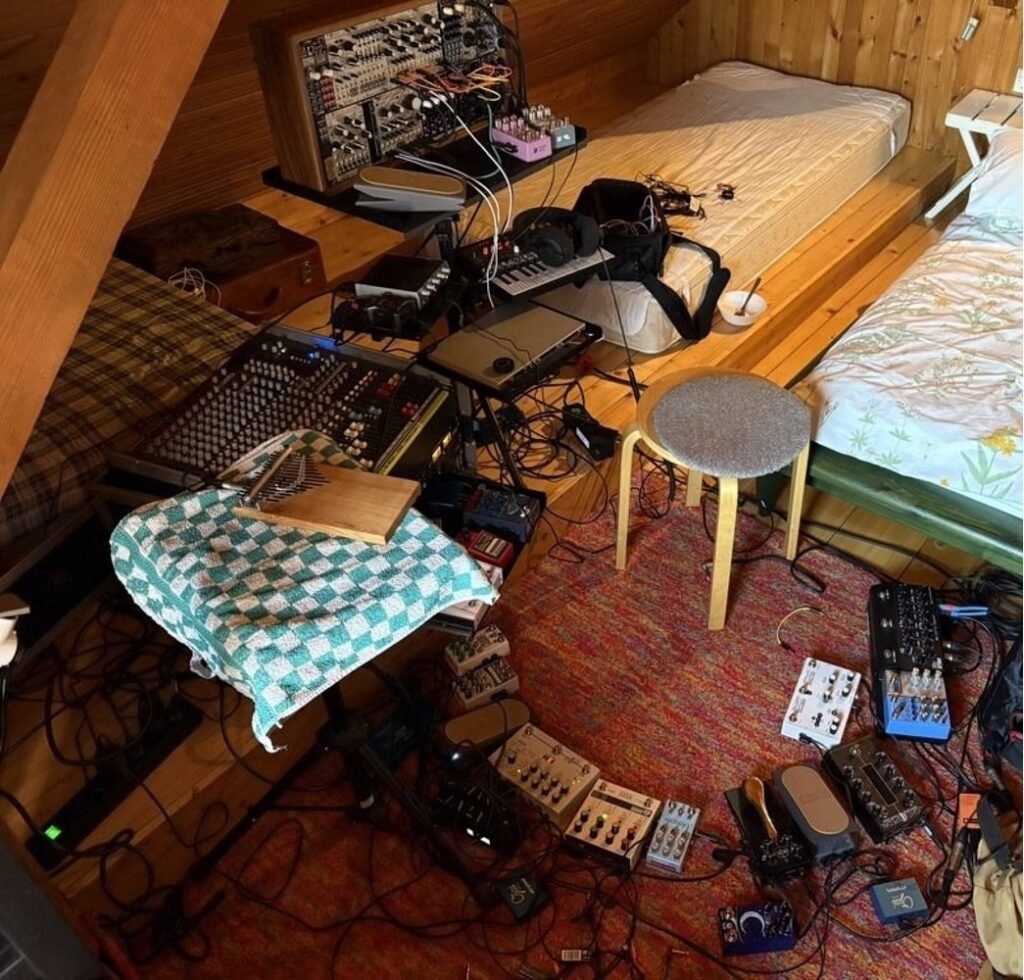

  • Workspace with live setup in the hut in Croatia, Microcosm retreatRetreat in Croatia

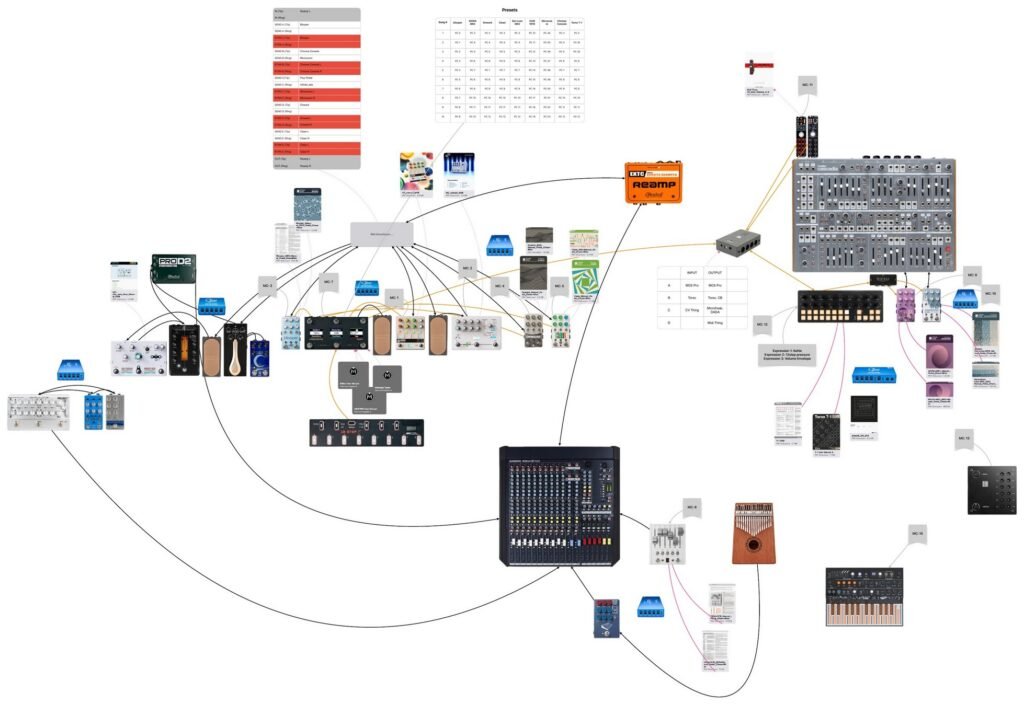

  • Signal and wiring plan of the Microcosm setupSignal chart with presets per piece

Light · Madeleine Haider aka Madeleine Marie

The light is listening

The light isn’t an illustration of the music, but an equal partner. Madeleine Haider – as artist Madeleine Marie – developed her own control system for it in TouchDesigner – with faders and buttons she switches live between scenes, colours and movement patterns. Via NDI the image goes to a second computer, where the dome is mapped in Resolume Arena – every strut individually addressable.

On top of that, the light reacts to the sound: the pulse of the Drum Machine makes it flicker briefly, synth pads create soft, slow gradients, and the intensity of the accordion flows into subtle nuances. So every light image is created in the moment – in the interplay between musician and light artist.

  • Madeleine Haider at the lighting controls of MicrocosmLive light control

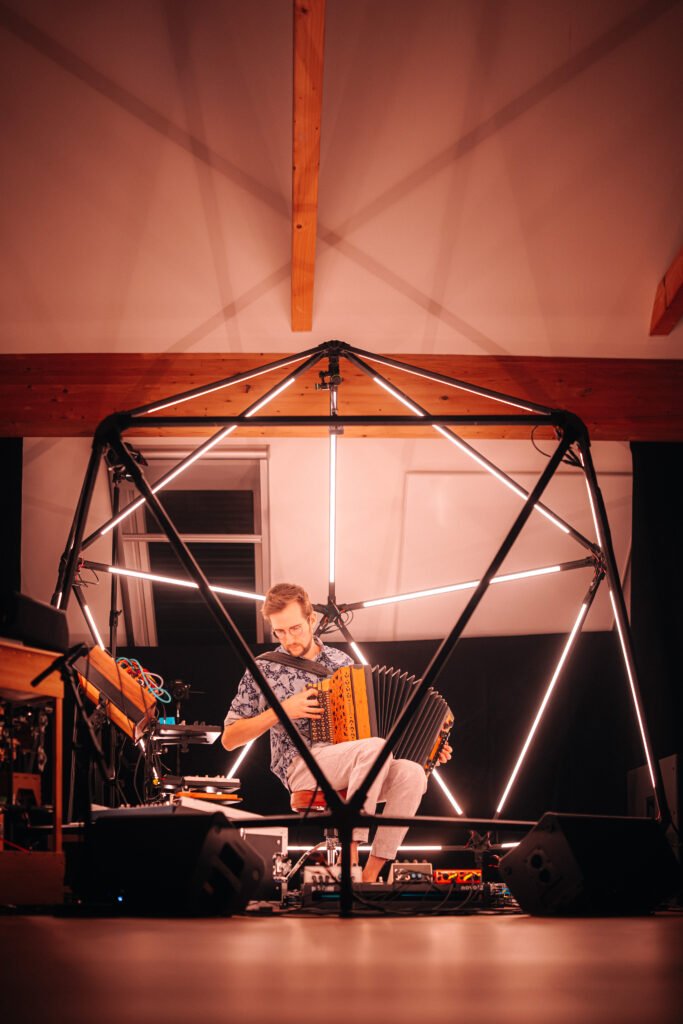

  • Jonny Kölbl in the glowing icosahedron dome at MicrocosmThe dome in action

Ten months to the premiere

  1. Autumn 2025Sound research & setup

    Building the setup of effects pedals, synthesizers and a modular system – and clearing lots of technical hurdles.

  2. Autumn 2025Collaboration

    First conversations with Madeleine Haider about an interactive connection of light and sound.

  3. Dec 2025 – Jan 2026Composition retreat

    Several weeks in a cabin in Croatia: searching for sounds, improvising, first pieces.

  4. Spring – summer 2026Building & rehearsals

    Building the LED dome, programming the light control, weekly intensive rehearsals at Audiotope Studio in Graz.

  5. 25 July 2026premiere

    Neudorf bei Ilz, Verein Gaudium – the dome right in the middle of the audience, 45 minutes of sound and light.

In the momentphotos: reithofer media

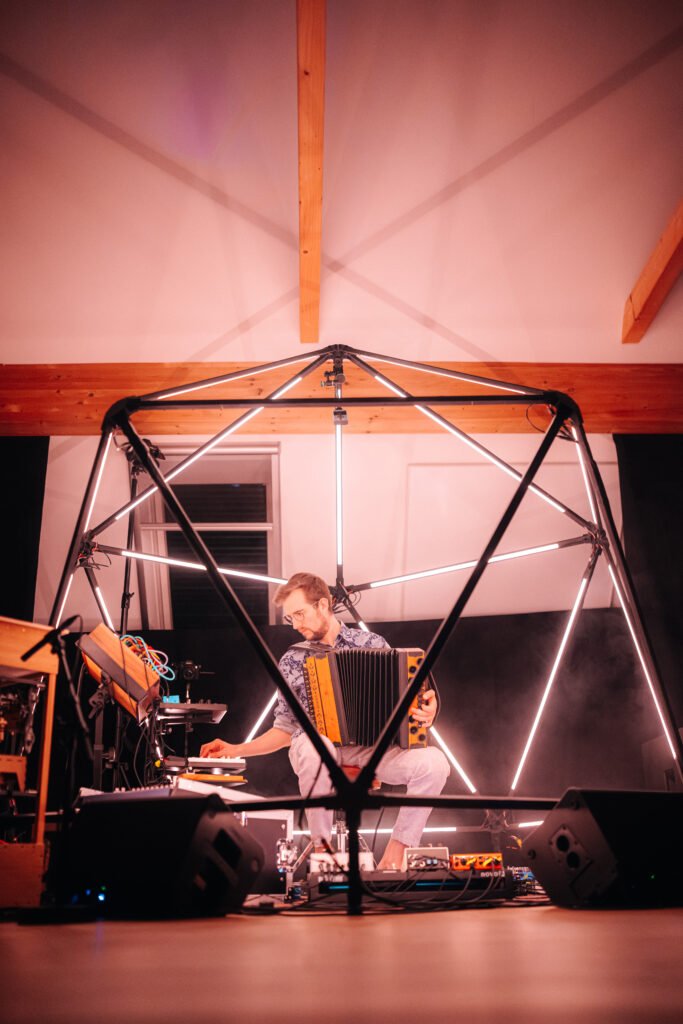

  • Stage setup of Microcosm with dome and light rods
  • Jonny Kölbl with accordion and synthesizer at the Microcosm premiere
  • Jonny Kölbl operating effect pedals at Microcosm

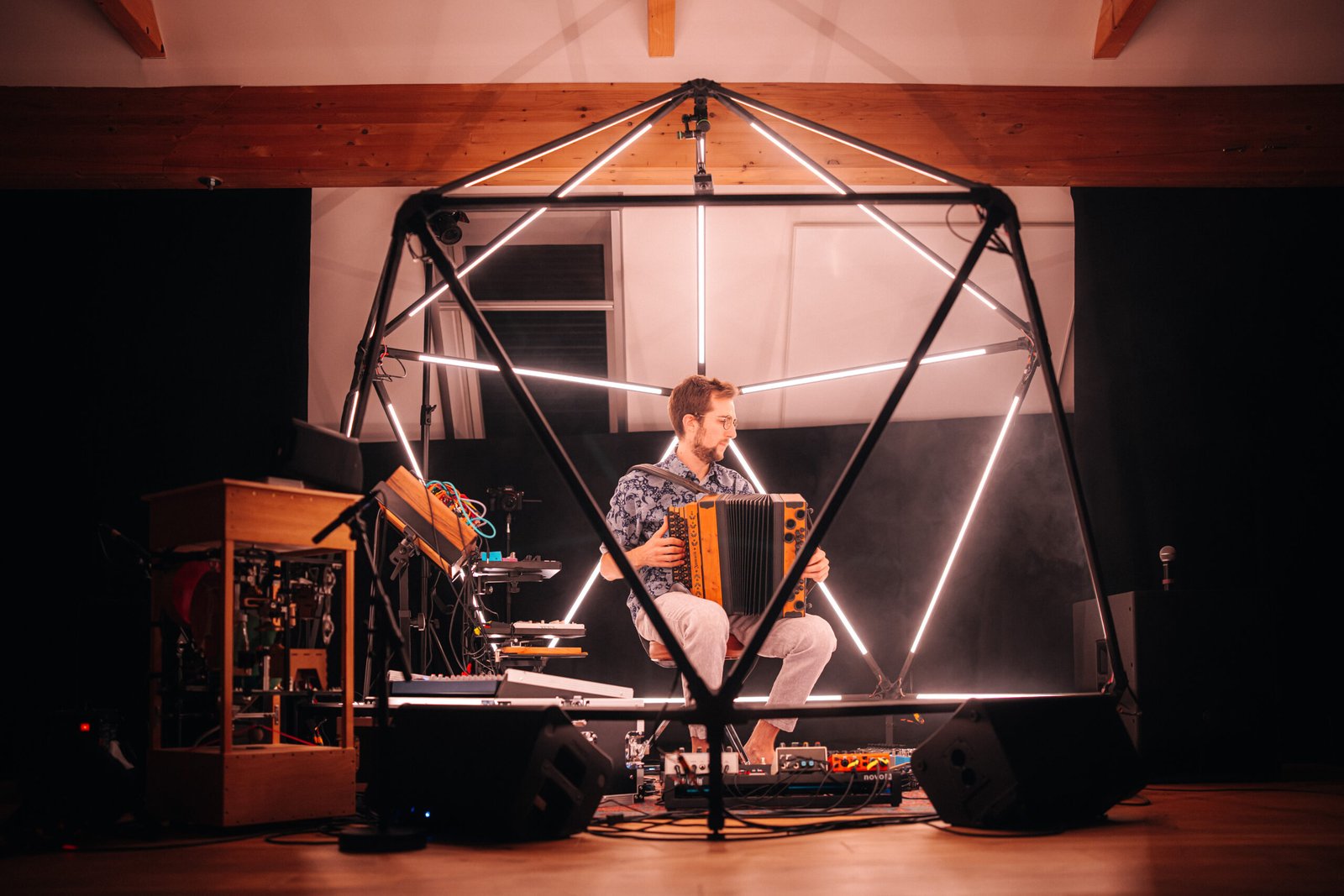

  • Microcosm live: Jonny Kölbl with accordion in the dome of light rods

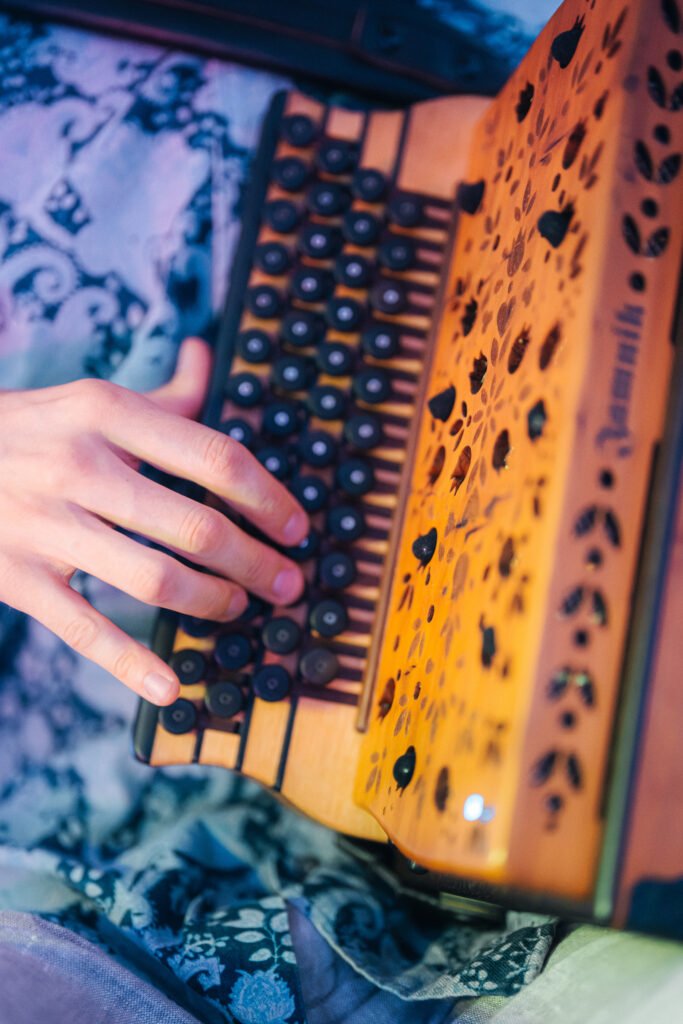

  • Styrian accordion in the glow at Microcosm, close-up
Logo of the Austrian Federal Ministry for Housing, Arts, Culture, Media and Sport

Microcosm was created as part of the 2025 Start Scholarship for Music and Music Theatre, funded by the Austrian Federal Ministry for Housing, Arts, Culture, Media and Sport.
