Bastl — wooden ribbon microphone

Lousa

A ribbon microphone built from wood – the housing as well as parts of the motor. The name is Styrian: Lousa, the ears.

  • Prototype 2022
  • Wood & aluminium
  • New version in progress
Prototype of the wooden ribbon microphone Lousa on a stand in the studio

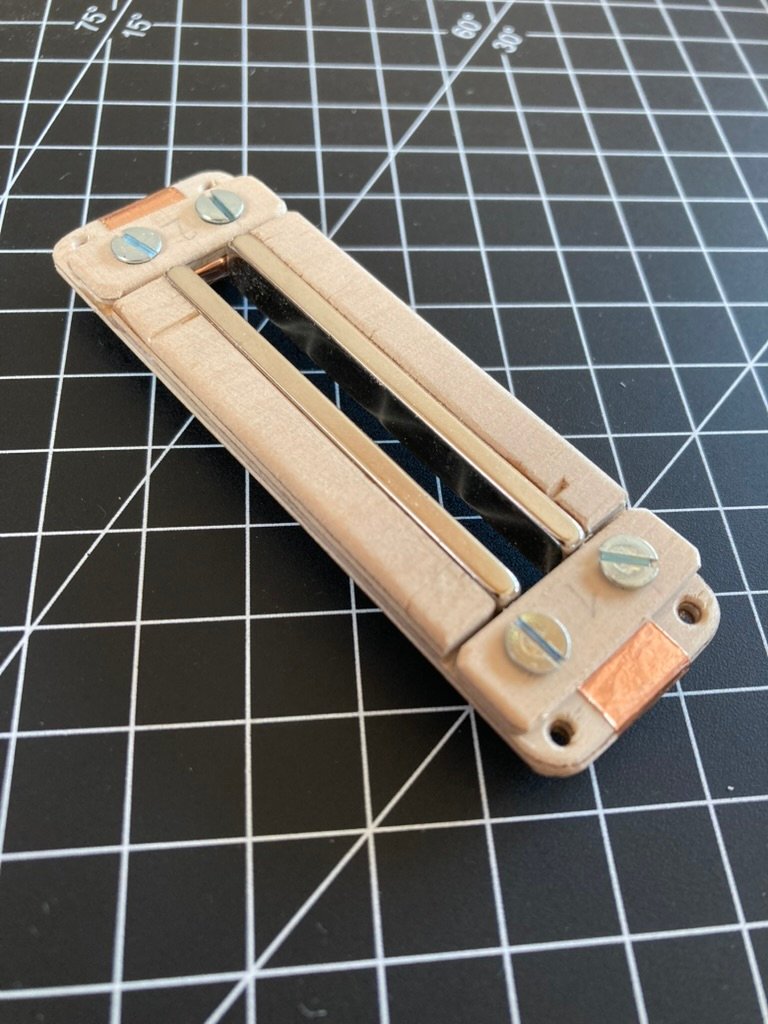

Ribbon motor of the Lousa microphone made of wood and aluminium

What is it?

Wood, magnets and a touch of aluminium.

Because I love wood, I built my own ribbon microphone. Not only the body is made of wood, but also parts of the ribbon motor.

Lousa is Styrian for ears – fitting for an instrument whose only job is to listen.

Audio sample

The prototype on the drums

Lousa · Prototype 2022

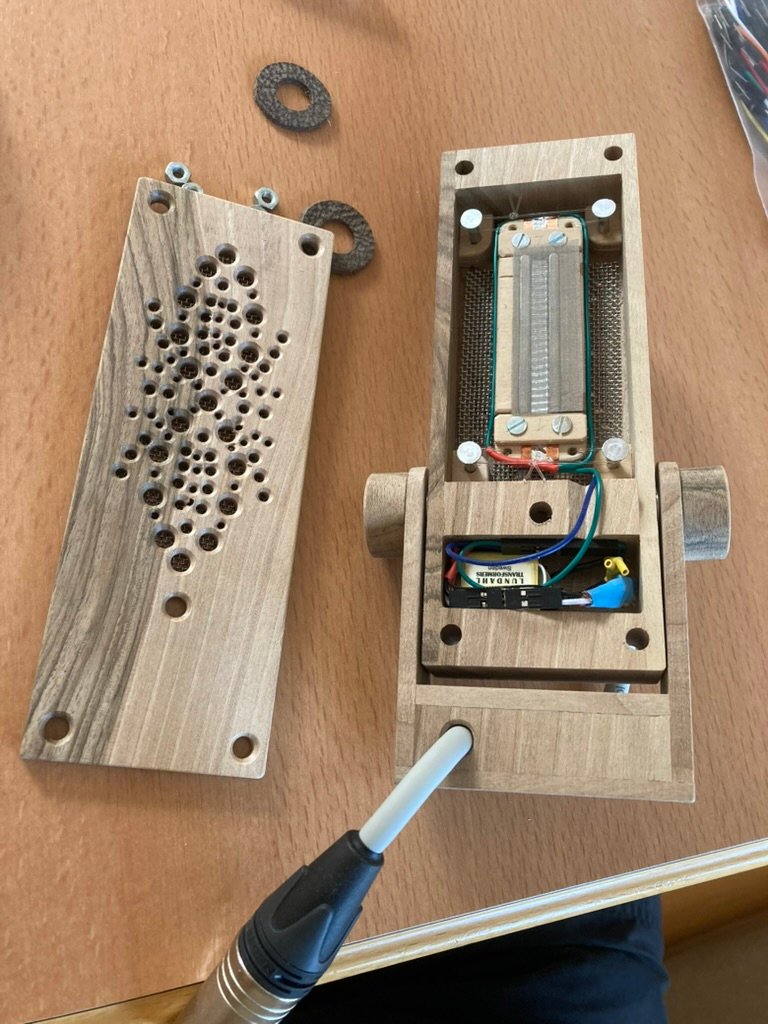

Opened ribbon microphone Lousa: wooden body with built-in motorPrototype, opened: perforated cover and motor

In the heartthe ribbon motor

The ribbon
A wafer-thin, corrugated aluminium foil – so light that it follows every movement of the air.
The magnets
Two strong magnets hold the ribbon between them. When it vibrates in their field, a tiny voltage is created: the signal.
The motor
The frame that holds the ribbon and magnets in position is partly built from wood.
The housing
A wooden body with a drilled hole pattern through which the sound reaches the ribbon.

In progress

From a single piece of wood.

The microphone in the video is still the prototype. The next Lousa is in the making: its housing is being carved on the CNC mill from a single piece of wood.

The first parts are milled – more as soon as it makes its first sound.

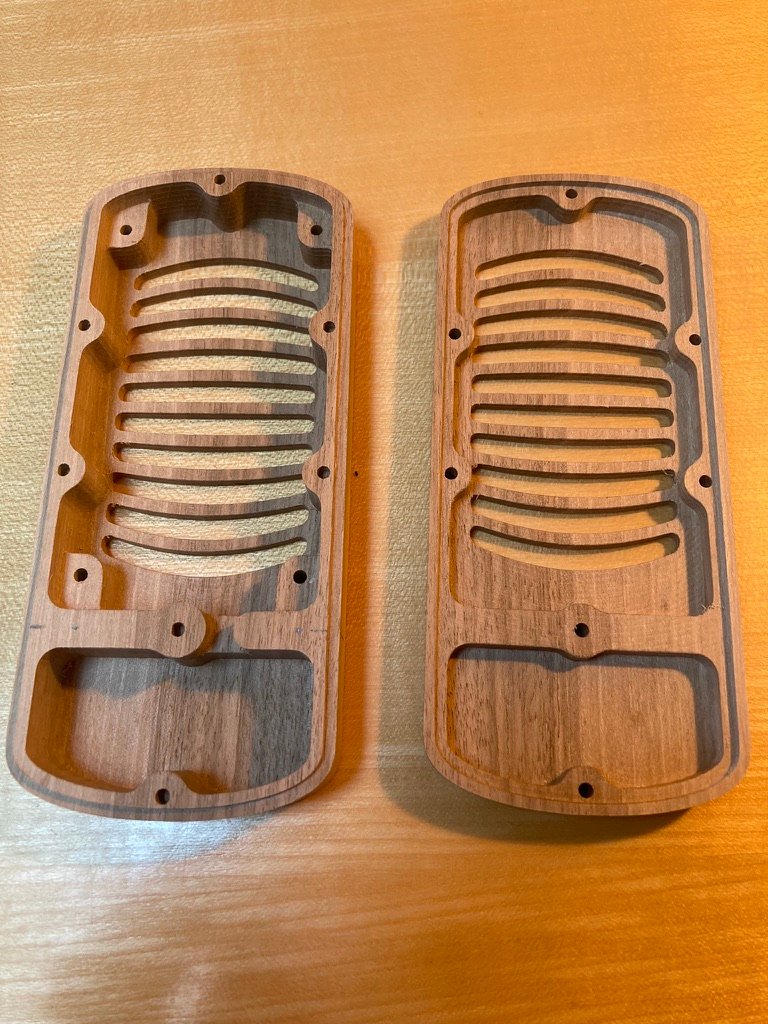

  • Two milled wooden body halves for the new Lousa prototypeThe two milled halves

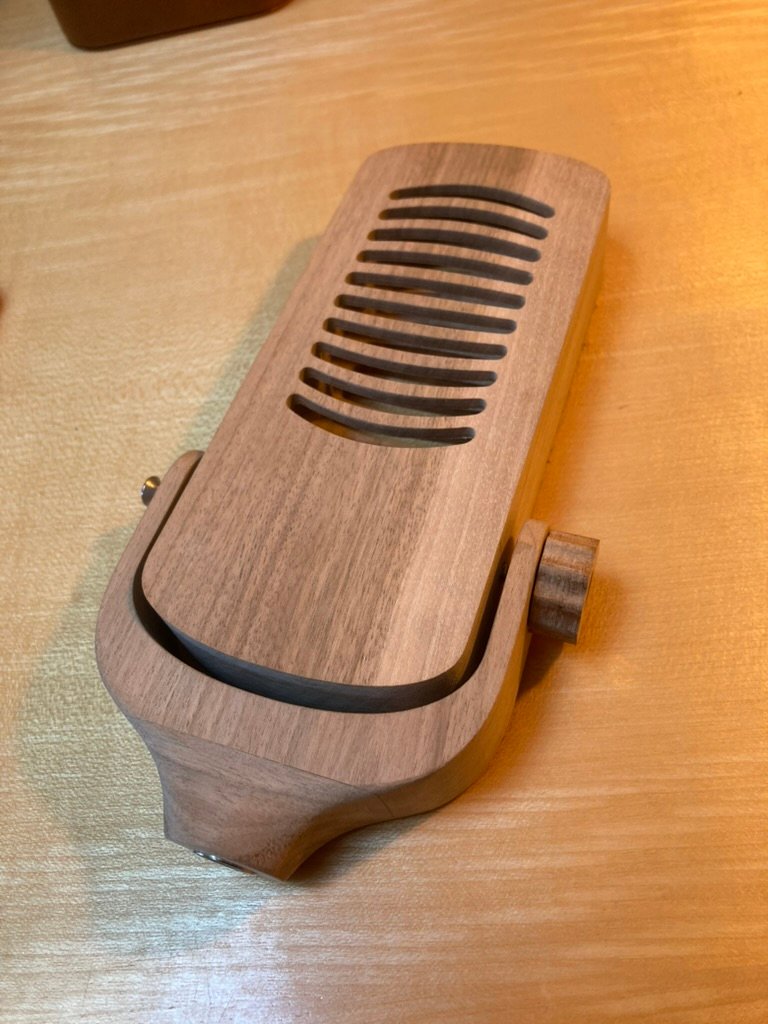

  • New prototype of the Lousa ribbon microphone with milled wooden bodyNew Lousa, assembled
